Transform Your Shelves in Seconds: Simply Attach the Compact Dispenser Unit DU

editor: AK

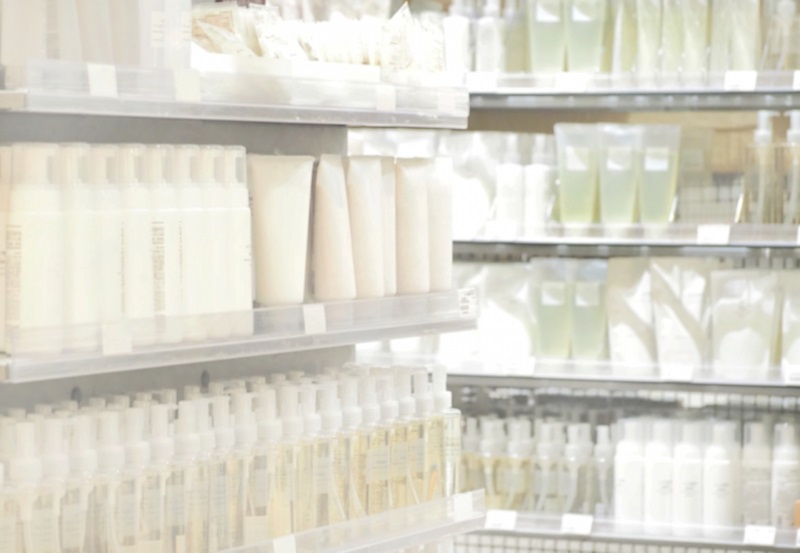

When displaying products on shelves, a common challenge is accessing items placed at the back.

The Small Dispenser Unit DU from Sunco Spring Co., Ltd. offers a simple, effective solution powered by the company’s signature product, CONSTON®.


Image credit: photoAC https://www.photo-ac.com/

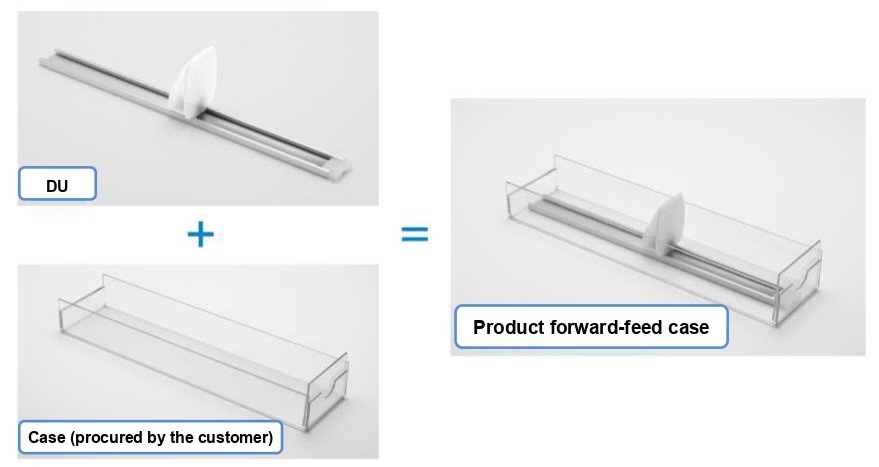

Easily attach the DU to a display case using the Double-sided seal, and it instantly works as a front-push display system.

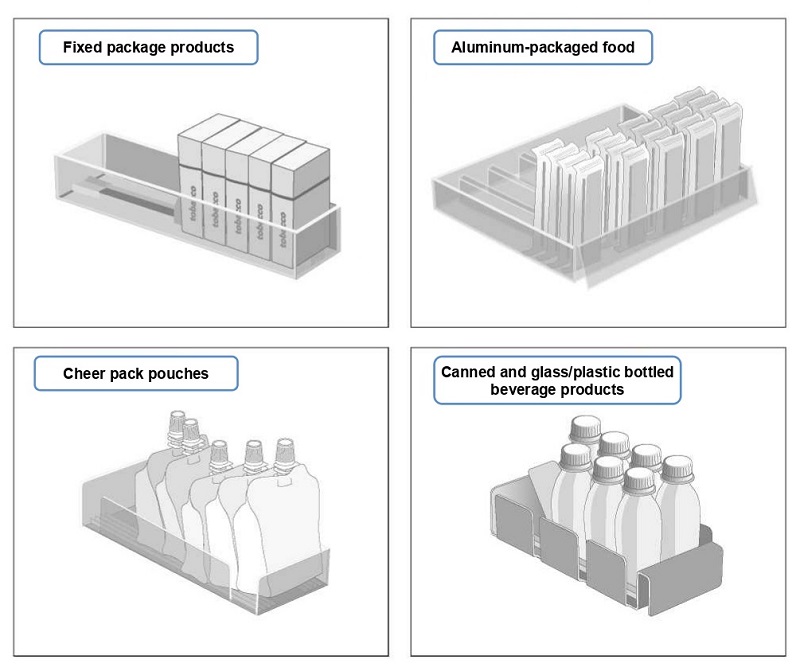

The DU is widely used in displays for cigarettes, cosmetics, food, pharmaceuticals, stationery, and general merchandise. With no need for manual front-facing, products are always presented neatly at the very front of the shelf.

Components and Combinations of Small Dispenser Units (DU-1 to DU-5)

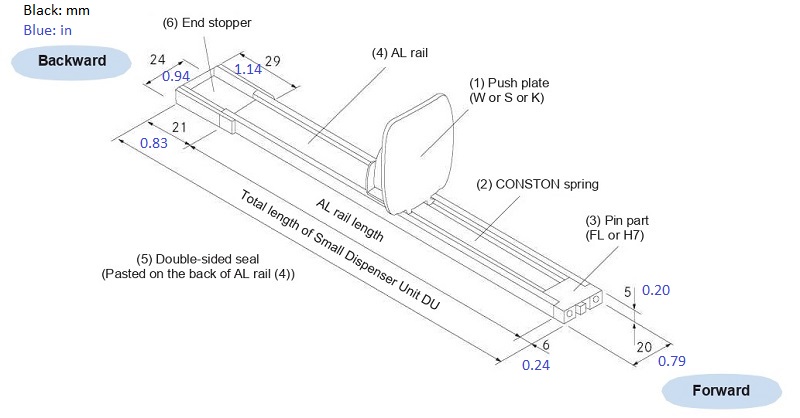

Components

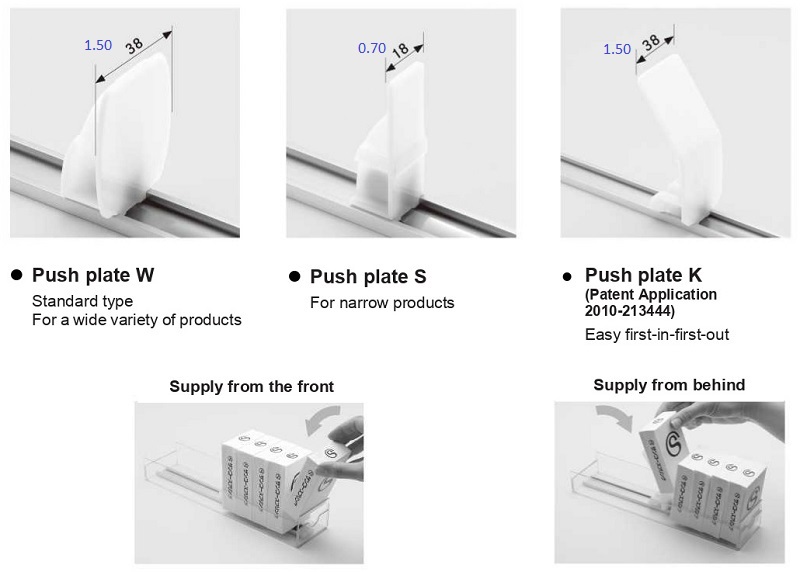

(1) Three types of push plates (POM) (Push plate W, Push plate S and Push plate K) are availabl, accommodating a wide range of products—from slim items such as lighters, spices, and lipsticks to wider items such as cigarettes and pharmaceuticals.

Black: mm
Blue: in

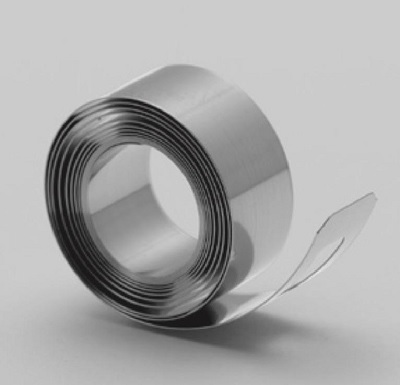

(2) CONSTON spring (SUS) - force spring automatically pushes products forward, keeping shelves fully stocked and orderly.

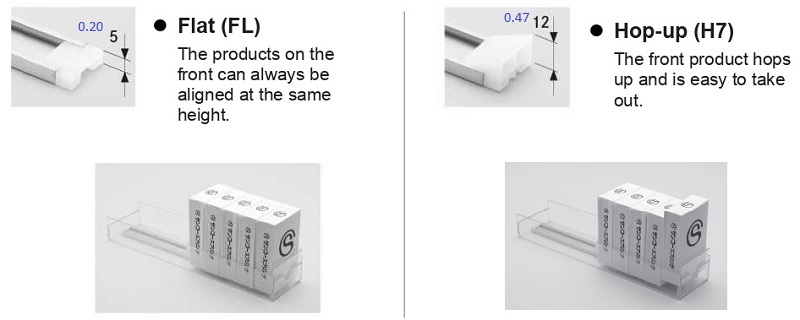

(3) Pin part (POM) - two types

Black: mm
Blue: in

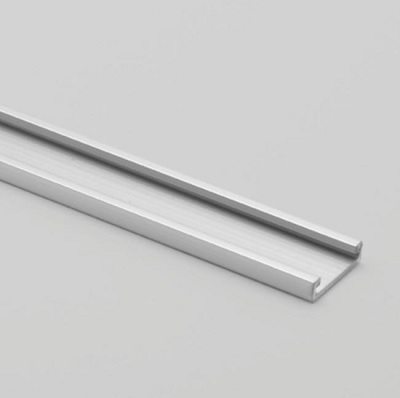

(4) AL rail (aluminum) - If the AL rail is required, please provide the internal dimensions of the case.
■ Total length of Small Dispenser Unit DU = Case internal dimension -2mm to -6mm / -0.08in to -0.24in
■ AL rail length = Case internal dimension -8mm to -12mm / -0.31in to -0.47in
(When using the End stopper = -29mm to -33mm / -1.14in to -1.30in)
Note: When installing in a case, be sure to place the front of the unit (Pin-part side) against the inner surface of the case, leaving a gap of 2 mm to 6 mm / 0.08in to 0.24in at the rear.

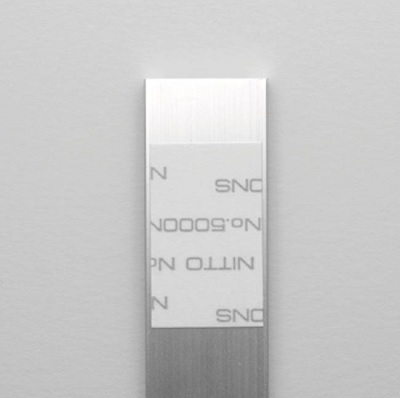

(5) Double-sided seal - For DU-3 and DU-5, two double-sided adhesive seals are attached to the front and rear of the AL rail upon delivery. (For DU-5, one additional seal is included separately.)

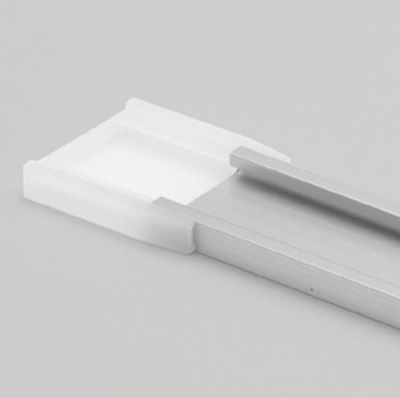

(6) End stopper (POM) - The Push plate can be locked in the rear position during product replenishment (compatible with Push plate W and S).
Note: When using the End stopper, please attach the supplied double-sided tape so that it overlaps both the AL rail and the End stopper.

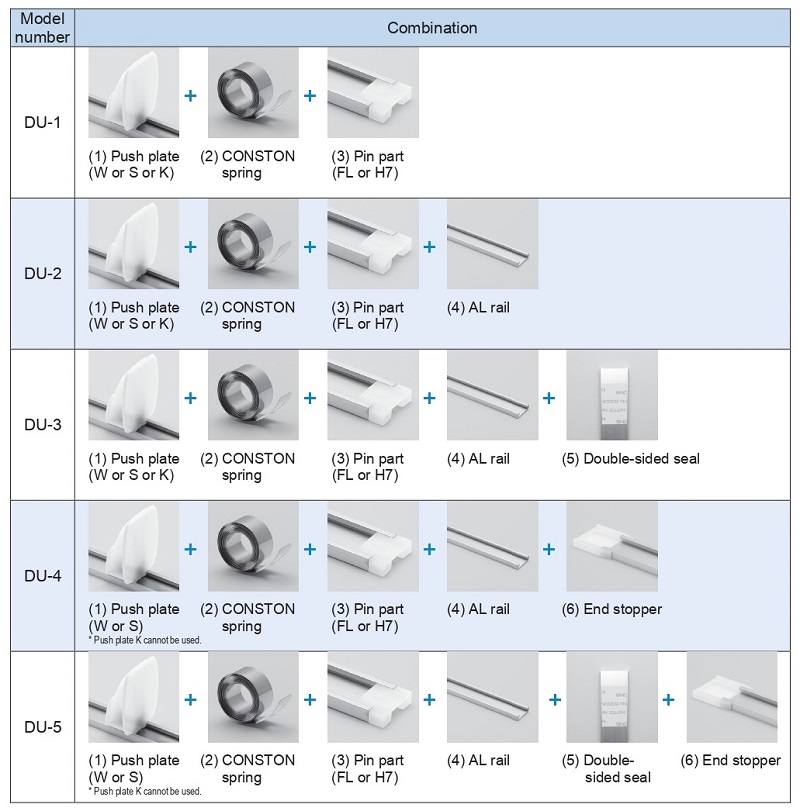

Combinations



Note:
Minimum order lot: 30 units per lot
Aluminum rail length: Min. 100mm / 3.94in to Max. 400 mm / 15.74in
(specifiable in 1 mm / 0.04in increments)

About Sunco Spring Co., Ltd.

Sunco Spring Co., Ltd. developed the CONSTON® constant force spring in 1952, and its unique properties quickly gained adoption across industries worldwide. Today, CONSTON is trusted and widely used in fields ranging from stationery and home appliances to automobiles, medical devices, construction machinery, ships, and satellites.

Beyond springs, Sunco Spring Co., Ltd. provides design, development, and research support for spring-based mechanisms to meet diverse customer needs. CONSTON also contributes to sustainability by reducing environmental impact and serving as an energy-saving alternative to conventional power sources.
